MK1-AXL Fingersafe Finger Guards for Extended Door Hinges

MK1-AXL Fingersafe Finger Guards for Extended Door Hinges

$72.00

Clear

Product Overview

  • The Fingersafe® MK1-AXL special is designed to accomodate extra wide openings like pivot doors and offset hinges. It comes complete with traditional accordian and fixing strip, as well as an extender piece.
  • Our doorguards can be retrofitted and easily cut to size.
  • Stocked length 80 inches.
  • This guard uses the which keeps the product flat against the door and protects fingers every time.
  • Fingersafe® is approved for use in any four-hour fire rated door assembly and is UL classified.
  • Durability:U.V and high impact resistance.
  • Simple to install. The MK1A(special) can be retrofitted using the self tapping screws included. See our fitting instructions and specs page.

Made from PVC-U and TPE, it is fireproof, weatherproof, resistant to UV and acts as a draft excluder and smoke inhibitor.

Click here for specification sheet

Product Details

Description

Description

MK1-AXL Fingersafe Finger Guards for Extended Door Hinges

$72.00

  • The Fingersafe® MK1-AXL special is designed to accomodate extra wide openings like pivot doors and offset hinges. It comes complete with traditional accordian and fixing strip, as well as an extender piece.
  • Our doorguards can be retrofitted and easily cut to size.
  • Stocked length 80 inches.
  • This guard uses the which keeps the product flat against the door and protects fingers every time.
  • Fingersafe® is approved for use in any four-hour fire rated door assembly and is UL classified.
  • Durability:U.V and high impact resistance.
  • Simple to install. The MK1A(special) can be retrofitted using the self tapping screws included. See our fitting instructions and specs page.

Made from PVC-U and TPE, it is fireproof, weatherproof, resistant to UV and acts as a draft excluder and smoke inhibitor.

Click here for specification sheet

Clear
SKU: B768114953246 Category:

FINGERSAFE FINGER PINCH PROTECTOR GUARDS FOR DOOR HINGES

A unique, inconspicuous and easy to install finger pinch protector guard for door hinges designed to prevent fingers being trapped in opening and closing doors.

Introduction

With some 300,000 reported incidents of amputated, mutilated or damaged fingers in doors per year, Fingersafe is designed specifically to prevent fingers from being damaged in the hinged end of doors. Besides the cost in trauma, treatment and disability, the owner or manager of a facility could be held responsible and incur litigation for personal injury. Having identified the need in the market, Fingersafe was developed as the original finger pinch protector guard for door hinges. Since 1996, Fingersafe has closed the door on injuries in the US.

Fingersafe Finger Pinch Protector Guards for Door Hinges Applications

Fingersafe is compatible with all types of standard hinged doors including: fire doors, wood, metal, aluminum, YKK type openings and dutch doors. Resistant to UV light, Fingersafe is designed for interior or exterior use. Specific uses include schools and other educational facilities, childcare and healthcare centers, homes for the elderly and infirm as well as residential use. It is commercially specified for restaurants, fast food outlets, as well as government and military buildings.

Compliance

ASTM E 152 - Methods of Fire Tests of Door Assemblies. NFPA 25 - Standard For The Inspection, Testing, And Maintenance Of Water-Based Fire Protection Systems. UL 1 OB - Fire Tests of DoorAssemblies. UL 1 OC - Positive Pressure Fire Tests of Door Assemblies. C AN4 S-104 - Standard Method for Fire Tests of Door Assemblies. UBC 7-2 - Fire Tests of Door Assemblies. Complaint for commercial ADA applications.

Fingersafe Finger Pinch Protector Guards for Door Hinges Description

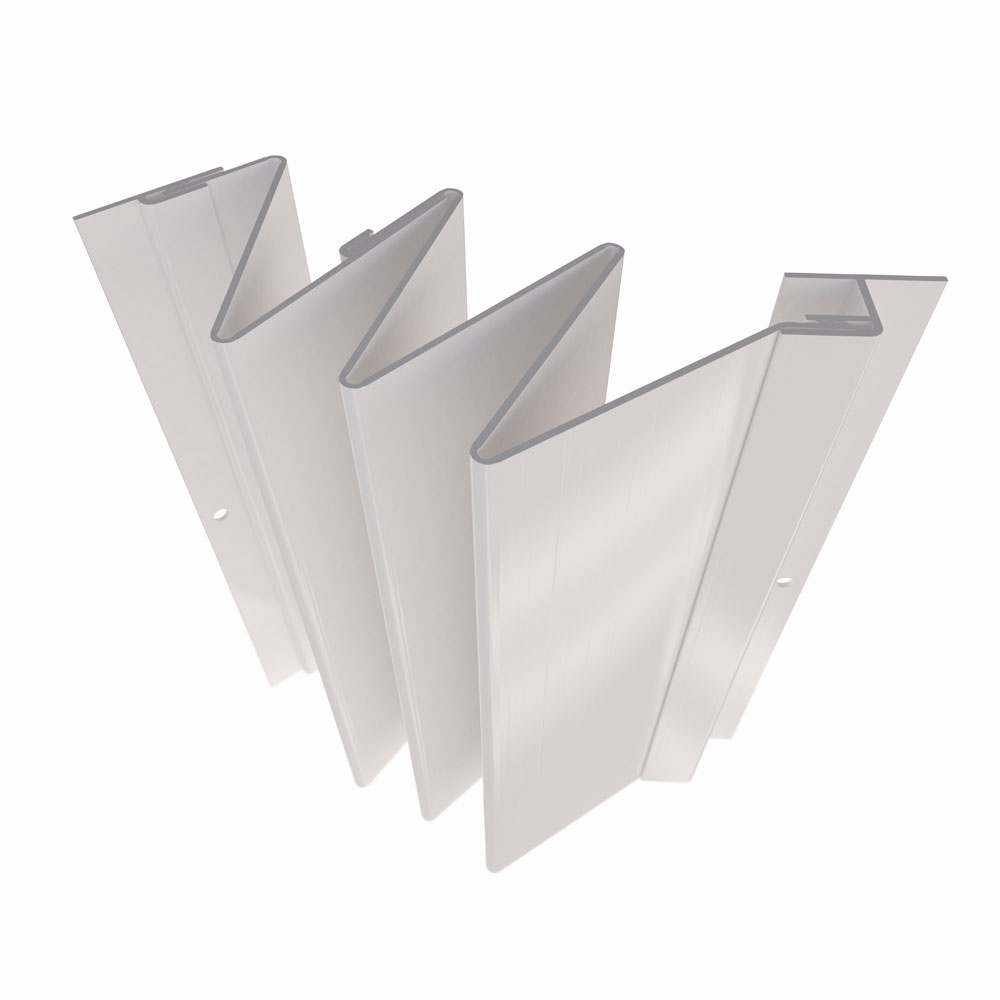

Fingersafe offers no resistance or restriction to the door operation and allows over 180 degrees of operation. It protects the full length of the door on each side of the hinged end of door. The MKl-A is a flexible, accordion shaped fitting designed to actually eject fingers from being trapped or crushed in the "push" side of doors. When the door is closed the fitting is compressed, but when the door is opened the fitting extends and provides a protective covering over the hinged end space. The accordion piece lies flat against the frame when the door is closed for aesthetically pleasing design. MKl-A units are installed via a fixing strip which allows easy access to the hinge
for maintenance.

Materials and Finishes

Made in the USA. PVC (UL V-0 rated) with TPE hinges designed for commercial use. Dimensions Stock lengths are 80 inches, 84 inches, 96 inches Appearance Available in White (default), Black, Brown, Grey and Almond at no extra cost

Performance

Unlike an inferior finger shield or wrap around device, Fingersafe allows even a fire door to open to 180 degrees and actually ejects the finger before an injury can occur. Fingersafe is aesthetically pleasing: : the MK1-A lies flat against the frame unobtrusively when the door is closed. It also offers draft
exclusion and is a smoke inhibitor.

MK1-A Compatibility

Fingersafe is compatible with all types of doors except double pivot.

Maintenance

Fingersafe is resistant to most household chemicals such as bleach, alcohol and other multi surface disinfectants and may be cleaned with any readily available cleaning products.

Installation

Simple to install in minutes. Retrofitted to existing doors using self tapping screws and installation accessories are included. See our installation page for further details.

Availability and Cost

Fingersafe products are stocked in 80'; 84'; and 96" with a one week turn around. A two year warranty is offered on fair wear and tear, supply only. Samples may be supplied on request to a potential client for evaluation purposes. We understand that accidents happen, replacement pieces available upon request.

Click here for specification sheet

Additional information

Weight 2.611 lbs
Dimensions 80 × 1 × 1 in
Color

Brown, Almond, White, Grey, Black

Size

80", 84", 96"

Additional information

Additional information

Weight 2.611 lbs
Dimensions 80 × 1 × 1 in
Color

Brown, Almond, White, Grey, Black

Size

80", 84", 96"
